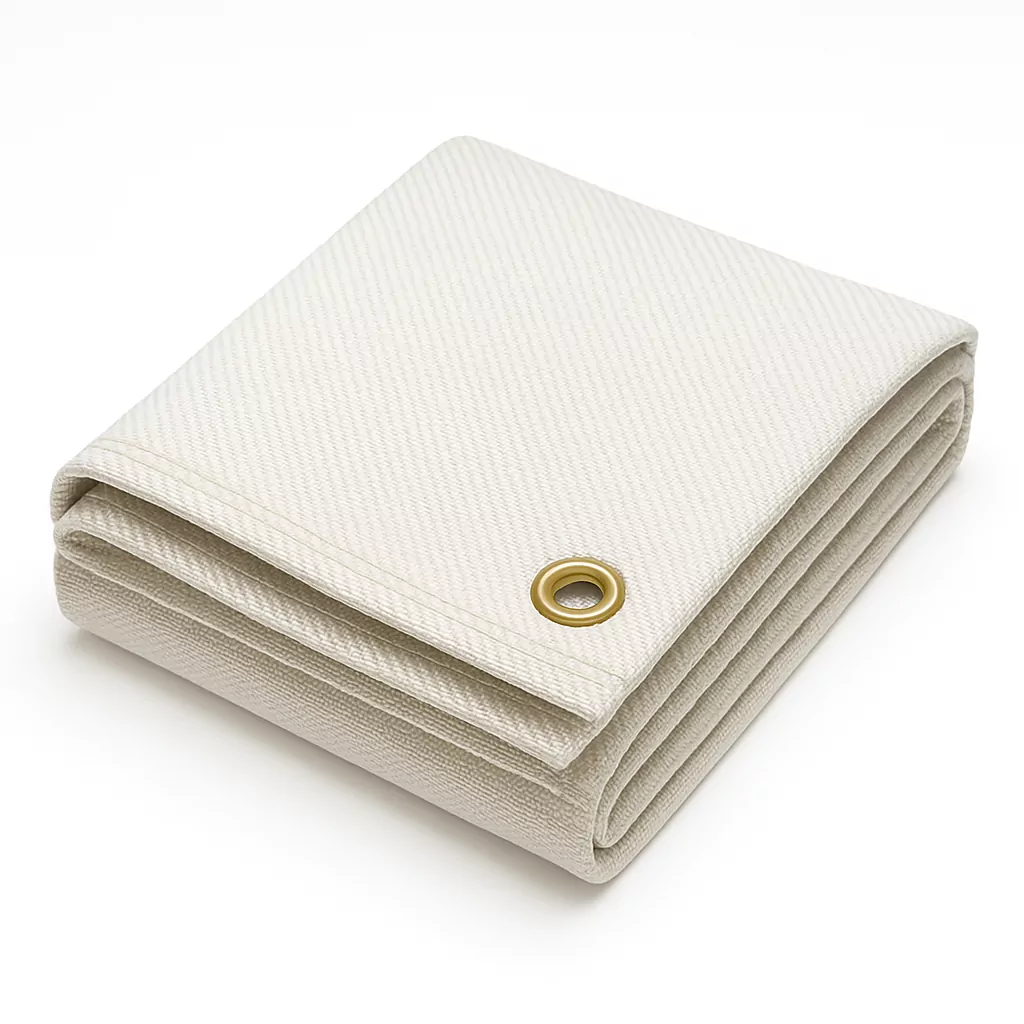

Fiberglass Welding Blanket
The Safeprotex Fiberglass Welding Blanket is crafted from heat-cleaned fiberglass, offering high strength, excellent heat resistance, and insulation properties. With a working temperature of 1022°F (550°C), it is suitable for general welding tasks and light to moderate spark protection. However, due to its material properties, the blanket is less flexible compared to softer alternatives.
We offer standard sizes ranging from 3ft to 9ft, with thickness options between 0.03in and 0.08in. For specialized needs, we provide fully customizable solutions, ensuring the perfect fit for your application.
Designed for convenience, fiberglass welding blanket is stitched with high-temperature threads and features grommets every 24 inches along the edges, making it easy to hang or secure in work areas. This design ensures quick and reliable protection in industrial and commercial settings.
THICKNESS:
0.030"
0.031"
0.035"
0.040"
0.080"
Customization
SIZE：
3′×4′
4′×6′
5′×6′
6′×6′
6′×8′
6′×9′
8′×8′
Customization
Key Features:
- Certified Safety: Tested and certified to meet FM Global and NFPA-701 flame-retardant standards, ensuring trusted performance.
- High Temperature Resistance: Withstands working temperatures up to 1022°F (550°C), offering stable protection in demanding environments.
- Customizable Options: Available in standard sizes (3ft to 9ft) and thicknesses (0.03in to 0.08in), with full customization to meet specific needs.
- Durable and Convenient: High-strength fiberglass construction with grommets every 24 inches, allowing for easy installation, hanging, or securing.
- Economical and Versatile: Affordable and suitable for large-scale applications, from small workstations to heavy industrial use.
- Chemical Resistance: Designed for diverse industrial settings, offering protection against heat and chemical exposure.
Applications:
- Ideal for welding operations, grinding tasks, and general spark protection in workshops, factories, and industrial sites. The blanket is a cost-effective solution for protecting personnel, equipment, and work areas from high-temperature hazards and fire risks.
| Base Material | Thermally treated fiberglass (non-coated base fabric). |
| Color | Standard white, customizable to other colors. |
| Weaving Pattern | Plain or twill weave, selectable based on requirements. |
| Yarn Density | 48 × 48 ends/inch (typical). |
| Weight | 18 oz/yd² (~610 g/m²), adjustable based on thickness. |
| Thickness | 0.03 in (0.75 mm) to 0.08 in (2 mm), customizable. |
| Size Range | Standard: 3ft × 3ft to 9ft × 9ft, fully customizable upon request. |
| Temperature Rating | – Continuous working temperature: 1022°F (550°C). |
| – Short-term exposure: up to 1200°F (650°C) without significant damage. | |
| Melting Point | 1832°F (1000°C). |
| Edge Treatment | High-temperature sewn edges with grommets every 24 inches for easy mounting. |
| Tear Strength | 65 lbs/in × 55 lbs/in (warp × weft), per ASTM D2261. |
| Tensile Strength | 3000 N/50mm (warp) × 2000 N/50mm (weft), per ISO 13934-1. |
| Flame Resistance | – Certified to FM Global flame-retardant standard. |
| – Certified to NFPA-701 flame-retardant standard. | |
| Chemical Resistance | Resistant to weak acids and alkalis, suitable for industrial chemical environments. |
| Water Permeability | None. |
| Flexibility | Low; suitable for flat laying or fixed hanging applications. |
| Applications | General welding operations, spark protection, and fire-resistant coverings. |
| Customization | – Sizes: Fully customizable to client needs. |
| – Colors: Customizable color options available. |
- BS EN 1869:2019
- NFPA701
- FM4950
- UL94 V0
