Graphite Coating Silica EV Fire Blanket
The Safeprotex Graphite-Coated High-Silica EV Fire Blanket combines the high-temperature resistance of high-silica materials with the exceptional thermal management capabilities of a graphite coating, making it an advanced solution for extreme high-temperature environments. The graphite coating ensures stability at sustained temperatures of 1000°C to 1500°C (1832°F to 2732°F), effectively withstanding flames up to 1500°C for 2–5 minutes while maintaining structural integrity. Its high thermal conductivity (100–200 W/m·K) enables rapid heat dissipation, preventing localized overheating and reducing fire hazards.
SIZE：
3′×4′
4.5′×6′
5′×6′
6′×8′
7.5′×9′
6′×9′
Customization
Key Features:
- Extreme Heat Resistance:
- Withstands continuous exposure to 1000–1500°C.
- Provides 2–5 minutes of stability under 1500°C flames, ensuring effective fire containment.
- Thermal Management:
- Graphite’s high thermal conductivity allows quick heat dispersion, preventing localized heat buildup.
- Minimizes the spread of thermal runaway and mitigates the risk of fire escalation.
- High Material Strength:
- Tensile strength up to 6000 N/mm², ensuring excellent thermal stability and resistance to thermal shock.
- Fire Suppression Efficiency:
- Specifically designed to handle high-pressure flames, explosions, and self-ignition from lithium battery thermal runaway events.
- Graphite coating delays fire progression while dissipating heat effectively.
Applications:
The Safeprotex Graphite Coating Silica EV Fire Blanket is highly effective in environments involving extreme heat and high-energy fire risks, such as:

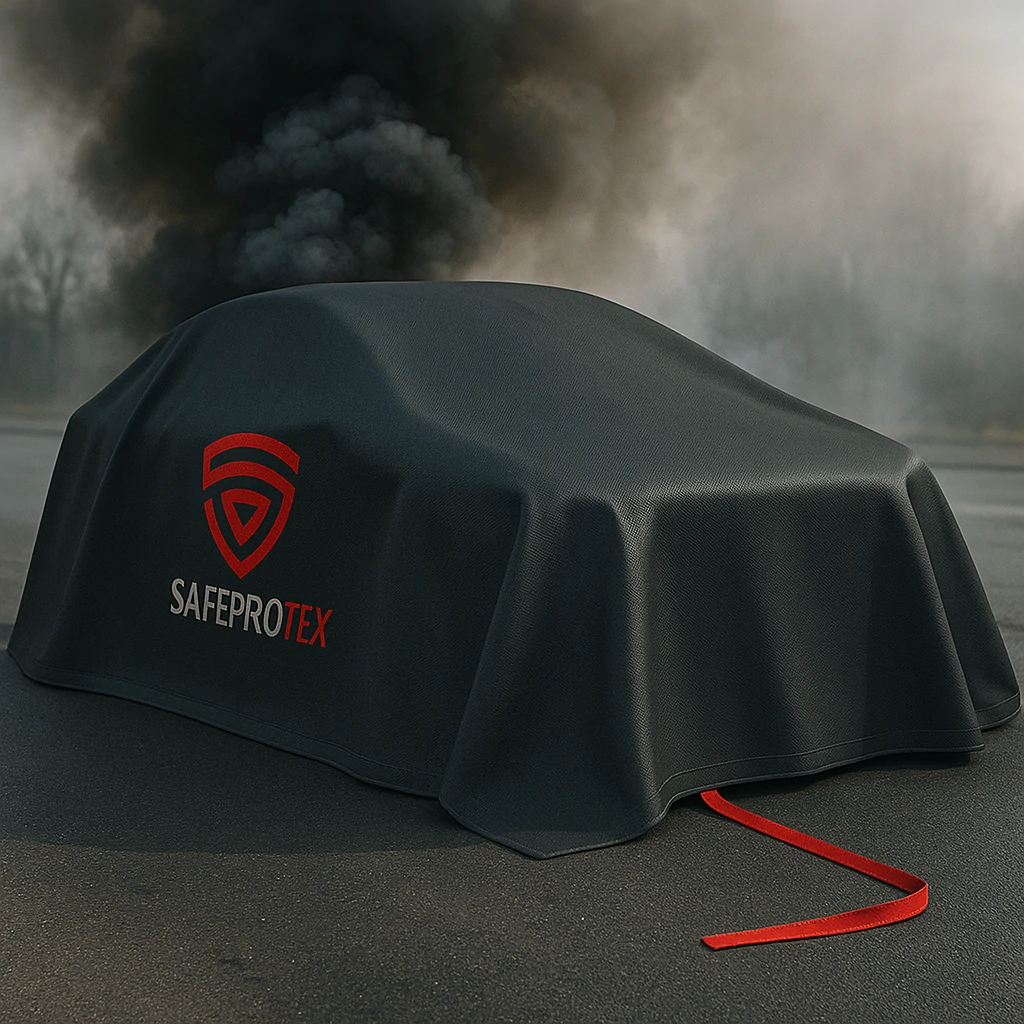

- High-Voltage Battery Fires: Ideal for electric buses, energy storage systems, and industrial battery applications.
- High-Temperature Experimental Environments: Provides reliable protection in research and development facilities.
- EV Charging Stations: Ensures fire containment during high-power charging scenarios.
- Battery Testing Equipment: Essential for safety in facilities testing high-capacity or experimental batteries.
| Parameter | Details |
| Base Material | High Silica Fiberglass Fabric |
| Coating Type | Graphite Coating |
| Color | Dark Gray or Black (Natural color of graphite coating) |
| Weaving Pattern | Plain or twill weave |
| Unit Area Weight | 28 oz/yd² to 40 oz/yd² (approx. 950 g/m² to 1356 g/m², including coating) |
| Thickness | 0.04 in (1.0 mm) to 0.15 in (3.8 mm), customizable |
| Standard Sizes | – 4.5 ft × 6 ft (1.37 m × 1.83 m) |
| – 5 ft × 6 ft (1.52 m × 1.83 m) | |
| – 6 ft × 8 ft (1.83 m × 2.44 m) | |
| – 6 ft × 9 ft (1.83 m × 2.74 m) | |
| – 8 ft × 10 ft (2.44 m × 3.05 m) | |
| – Fully customizable upon request | |
| Temperature Resistance | – Continuous Graphite Coating Performance: 1000°C–1500°C |
| – Short-Term Extreme Heat Resistance: Handles 1500°C flames for 2–5 minutes | |
| – High-Temperature Insulation Duration: Maintains stable insulation for 15–20 minutes in 1000°C environments | |
| Thermal Management | – Thermal Conductivity: 100–200 W/m·K (Graphite ensures rapid heat dissipation) |
| – Heat Diffusion: Prevents localized overheating and reduces fire risks | |
| Protective Features | – Fire Resistance: Effectively isolates flames and heat radiation |
| – High-Temperature Stability: Coating maintains structural integrity under extreme heat | |
| – Waterproof & Chemical Resistance: Moderate protection for humid or chemically active environments | |
| Mechanical Properties | – Tensile Strength: 6000 N/mm² |
| – Abrasion Resistance: Durable surface suitable for repeated use | |
| – Thermal Shock Resistance: Maintains material stability under rapid temperature changes | |
| Edge Treatment | Heat-resistant edge design with metal grommets on all four corners (approx. 24 in / 0.61 m diameter) for easy hanging and fixing |
| Applications | – High-voltage battery fires (e.g., electric buses, energy storage systems) |
| – Lithium battery thermal runaway fire scenarios | |
| – High-temperature experimental environments and battery testing equipment | |
| – Electric vehicle charging stations | |
| – Industrial and specialized fire protection (e.g., aerospace, defense applications) |
- BS EN 1869:2019
- NFPA701
- FM4950
- UL94 V0
