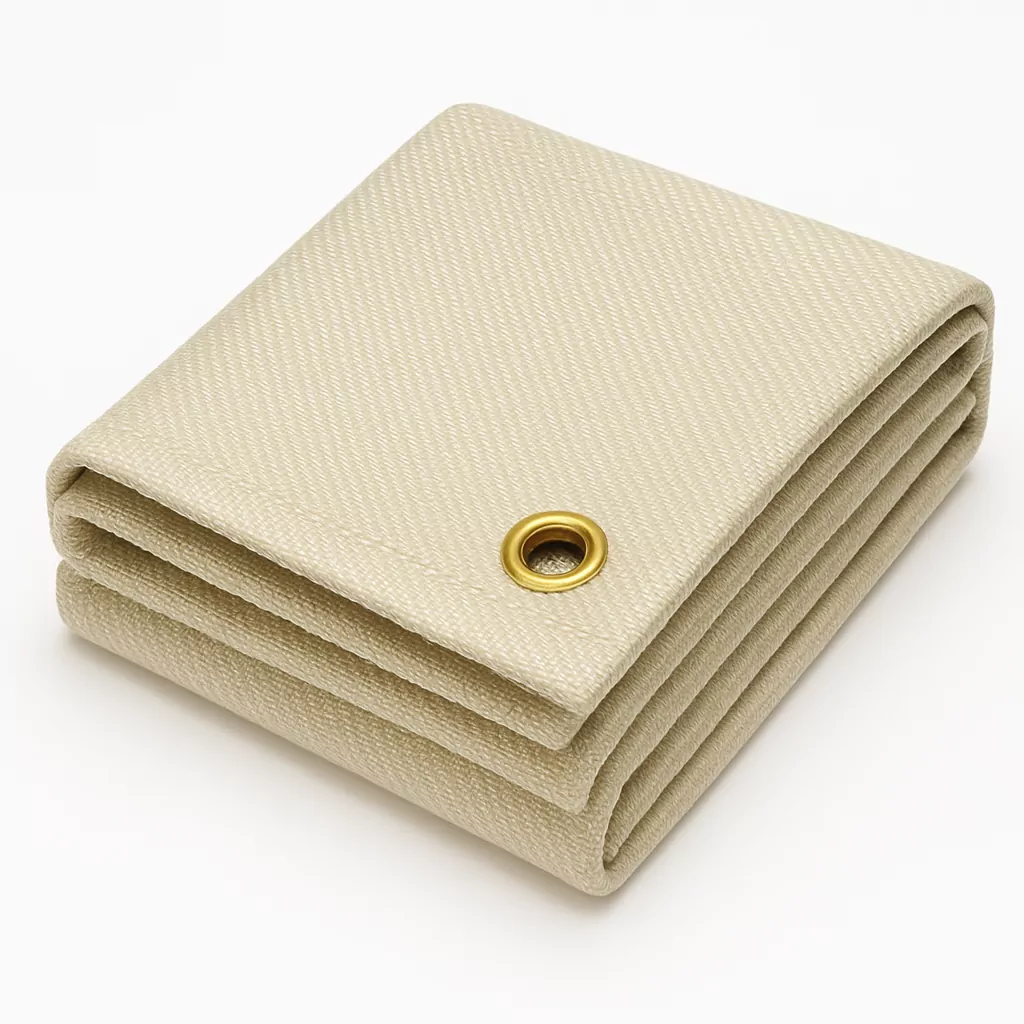

High Silica Welding Blanket
The Safeprotex High Silica Welding Blanket is crafted from High Silica Fiberglass Fabric, offering exceptional thermal protection for industrial welding applications. With a working temperature of 1000°C (1832°F) and the ability to withstand short-term exposure up to 1200°C (2192°F), it delivers unparalleled resistance to oxidation and molten metal splashes, ensuring maximum safety during heavy-duty operations.
Standard sizes range from 3ft to 9ft, with thickness options between 0.030in to 0.060in, and fully customizable options are available to meet specific industrial requirements.
Designed with durability and practicality in mind, the blanket is sewn with high-temperature threads and features grommets every 24 inches for easy installation, hanging, and long-term use. It is ideal for heavy sparks, molten splatter, and slag in demanding industrial environments.
THICKNESS:
0.030"
0.031"
0.035"
0.040"
0.080"
Customization
SIZE：
3′×4′
4′×6′
5′×6′
6′×6′
6′×8′
6′×9′
8′×8′
Customization
Key Features:
- Extreme Heat Resistance: Withstands continuous high temperatures of 1000°C (1832°F) and short-term exposure to 1200°C (2192°F) for maximum protection in industrial applications.
- Molten Splash Protection: Made from high silica material that effectively resists molten metal adhesion and impact, ensuring worker safety during welding tasks.
- Durable Edge Design: Sewn with high-temperature threads and equipped with grommets every 24 inches, enabling convenient installation and extended use.
- Certified Safety Standards: Tested and certified to meet FM Global and NFPA-701 flame-retardant standards for international compliance.
- Fully Customizable: Available in various sizes, thicknesses, and finishes to suit diverse industrial applications, enhancing user experience.
Applications:
- The Safeprotex High Silica Welding Blanket is ideal for heavy-duty welding, molten splash protection, and industrial fire shielding in workshops, factories, and high-temperature environments.
| Attribute | Specification |
| Base Material | High Silica Fiberglass Fabric (SiO₂ content ≥ 96%) |
| Coating Type | Non-coated (base fabric). |
| Color | Standard light brown or white, customizable to other colors. |
| Weaving Pattern | Plain or twill weave for enhanced mechanical strength and flexibility. |
| Yarn Density | 60 × 40 ends/inch (warp × weft, typical). |
| Unit Weight | 18 oz/yd² to 36 oz/yd², customizable based on thickness. |
| Thickness | 0.030 in (0.76 mm) to 0.060 in (1.5 mm), fully customizable. |
| Size Range | Standard: 3ft × 3ft to 9ft × 9ft, fully customizable. |
| Temperature Rating | – Continuous: 1000°C (1832°F). |
| – Short-term exposure: Up to 1200°C (2192°F) with no significant performance loss. | |
| Melt Resistance | Resistant to molten metal splashes and slag adhesion, suitable for high-temperature welding and metalworking. |
| Edge Treatment | High-temperature sewn edges with grommets every 24 inches for easy hanging and securing. |
| Tear Strength | 70 lbs/in × 65 lbs/in (warp × weft), per ASTM D2261. |
| Tensile Strength | 4000 N/50mm (warp) × 3500 N/50mm (weft), per ISO 13934-1. |
| Flame Resistance | – Compliant with FM Global flame-retardant standard. |
| – Certified to NFPA-701 flame-retardant standard. | |
| Oxidation Resistance | Excellent in high-temperature environments, ensuring extended service life. |
| Chemical Resistance | Resistant to weak acids, weak alkalis, and some industrial solvents. |
| Flexibility | Medium-low, suitable for fixed applications or specific industrial use cases. |
| Water Permeability | None. |
| Applications | Heavy-duty spark protection, high-temperature slag, molten metal environments; suitable for metalworking, foundry, and welding. |
| Customization | – Fully customizable size, thickness, and shape. |
| – Custom color options available upon request. |
- BS EN 1869:2019
- NFPA701
- FM4950
- UL94 V0
