SIZE：
3′×4′
4.5′×6′
5′×6′
6′×8′
7.5′×9′
6′×9′
Customization

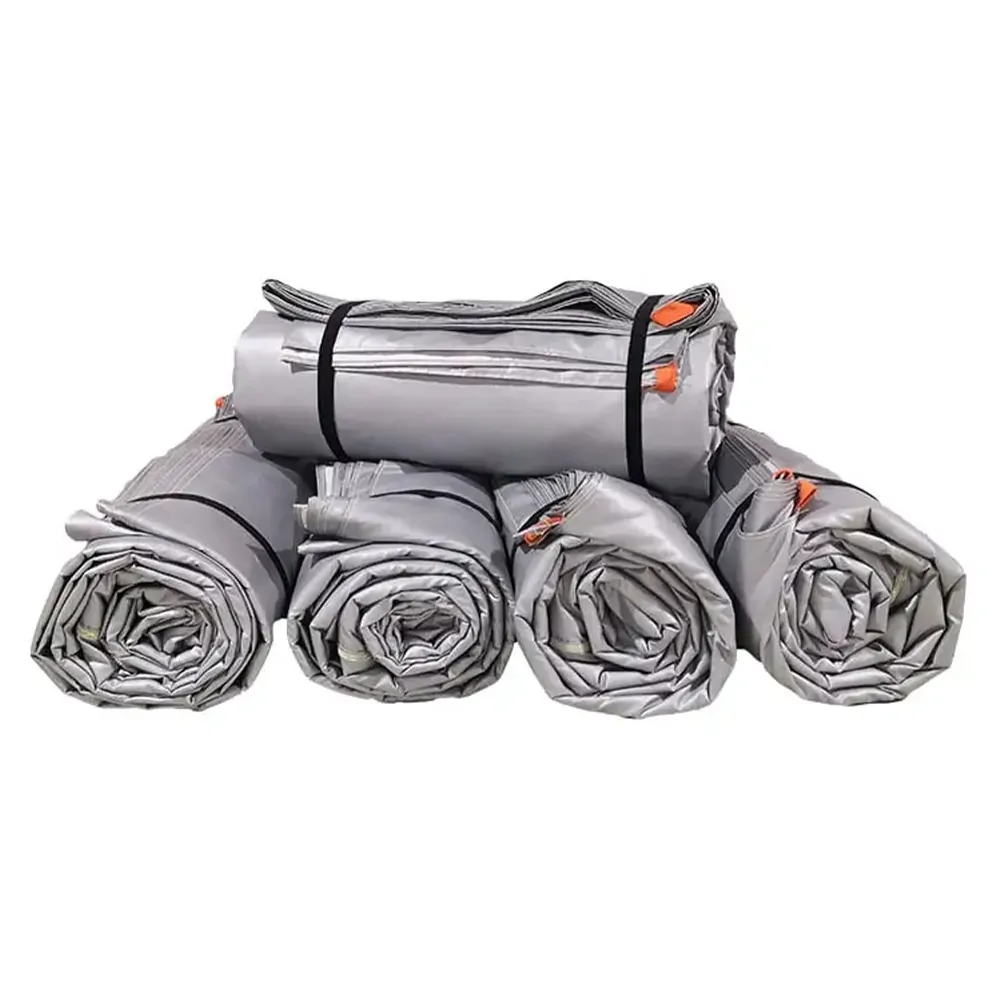

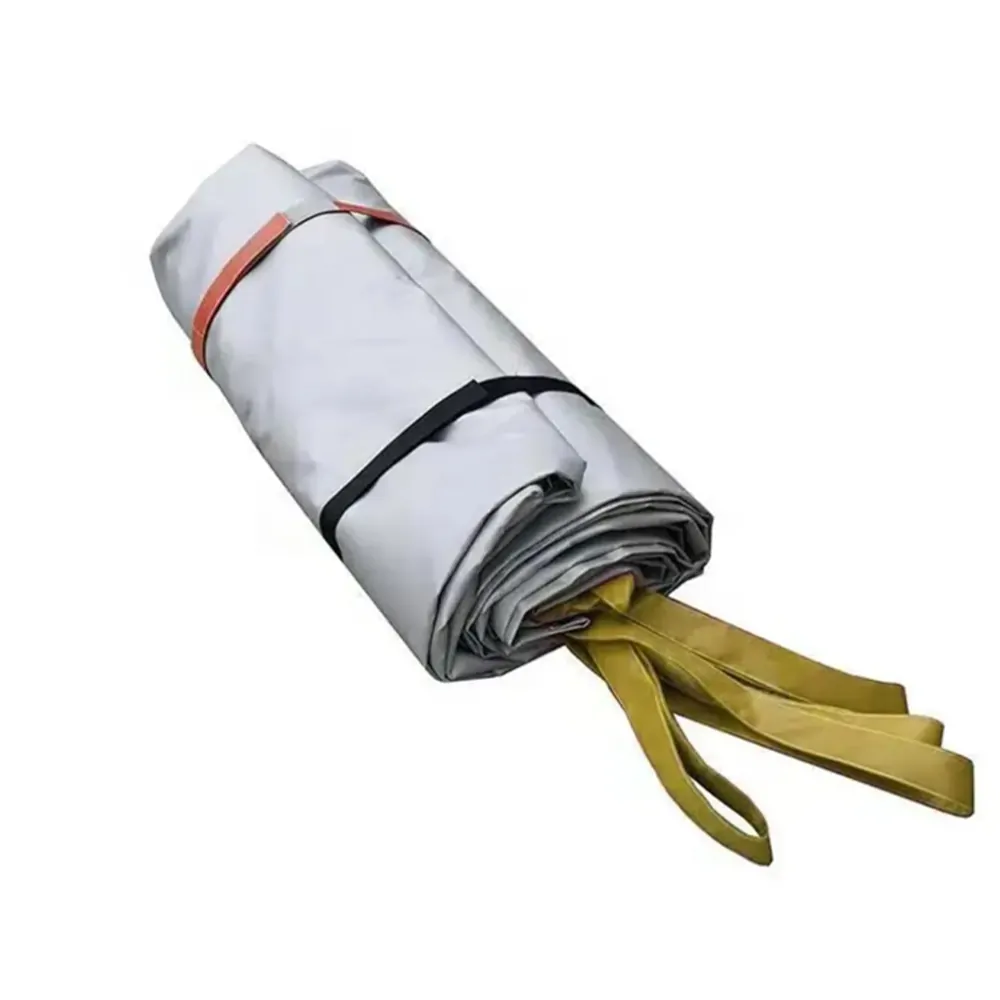

Silicone Coated Fiberglass EV Fire Blanket
Safeprotex Silicone-coated fiberglass fire blanket is an economical solution specifically designed to control electric vehicle (EV) fires in short-duration emergencies. With a continuous temperature resistance of 550°C (1022°F), the silicone coating enhances the blanket’s performance under 260°C (500°F) short-term thermal shock conditions. This combination of materials provides flexibility, abrasion resistance, water resistance, and chemical resistance, making it suitable for multifunctional environments.
While the silicone fiberglass EV fire blanket is not intended for prolonged exposure to the extreme heat of EV battery fires, which can reach 1000°C (1832°F) and occasionally exceed 1200°C (2192°F) in localized areas, it offers 5–10 minutes of short-term protection. This critical window allows for initial containment of flames and mitigation of early-stage fire spread. It is particularly suited for small-scale fires caused by sparks, splashes, or localized overheating, making it a practical choice for emergency preparedness in logistics warehouses or medium-sized fleet operations.
Safeprotex offers standard sizes ranging from 4.5 ft to 9 ft, while fully customized sizes and designs are also available to meet specific operational needs. Our EV fire blankets are certified to FM 4950 and NFPA 701 standards, ensuring compliance with international fire safety requirements.
Key Features:
- Economical High-Performance Design: Combines silicone coating with fiberglass for a cost-effective solution to manage short-duration EV fires.
- Temperature Resistance: Continuous performance at 550°C (1022°F) with short-term shock resistance up to 260°C (500°F).
- Functional Versatility: Durable yet flexible, offering abrasion, water, and chemical resistance for diverse applications.
- Short-Term Fire Control: Provides critical 5–10 minutes of fire containment for EV battery fires, supporting early-stage fire suppression efforts.
- Certification: Meets FM 4950 and NFPA 701 standards for fire protection and safety.
Applications:
- Small-Scale EV Fire Containment: Suitable for fires caused by sparks, localized overheating, or small fire events.
- Emergency Preparedness: Ideal for logistics warehouses, medium-sized fleet operators, and facilities requiring compact fire suppression tools.

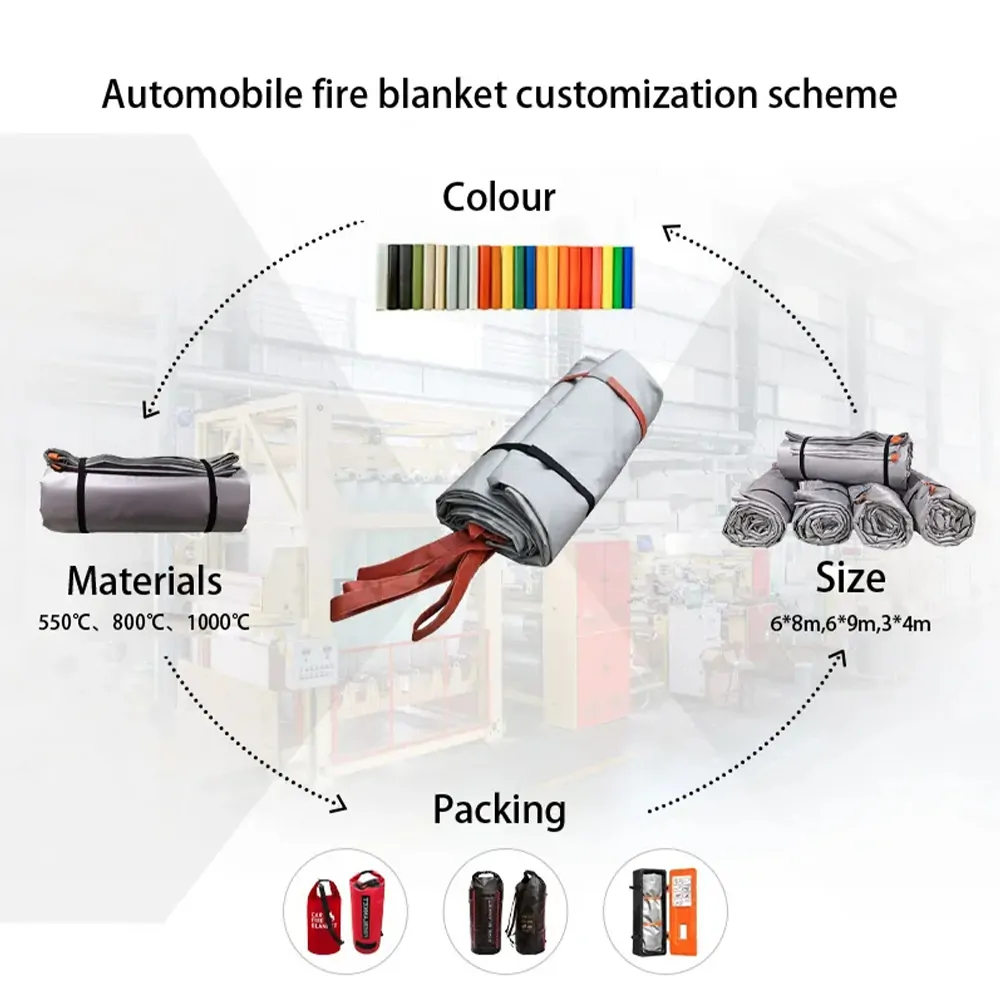

- Custom Use Cases: Customizable sizes and designs enable tailored solutions for specific industrial and automotive applications.
| Parameter | Details |
| Base Material | Fiberglass Fabric |
| Coating Type | Silicone Coating |
| Color | Gray, Red (Customizable upon request) |
| Weaving Pattern | Plain or twill weave |
| Unit Area Weight | 18 oz/yd² to 24 oz/yd² (approx. 610 g/m² to 813 g/m², including coating) |
| Thickness | 0.03 in (0.75 mm) to 0.08 in (2 mm), customizable |
| Standard Sizes | – 4.5 ft × 6 ft (1.37 m × 1.83 m) |
| – 5 ft × 6 ft (1.52 m × 1.83 m) | |
| – 6 ft × 8 ft (1.83 m × 2.44 m) | |
| – 6 ft × 9 ft (1.83 m × 2.74 m) | |
| – 7.5 ft × 9 ft (2.29 m × 2.74 m) | |
| – Custom sizes available upon request | |
| Temperature Resistance | – Continuous Performance (Fiberglass): 1022°F (550°C) |
| – Short-Term Thermal Shock: 500°F ~ 572°F (260°C) | |
| Protective Features | – Fire Resistance: Suitable for short-term flame suppression (approx. 5–10 minutes) |
| – Waterproof: Silicone coating ensures excellent water resistance in humid environments | |
| – Oil & Chemical Resistance: Suitable for environments with oil spills or chemical leaks | |
| Mechanical Properties | – Abrasion Resistance & Flexibility: Durable surface for folding and transportability |
| Edge Treatment | Heat-resistant edges, with metal grommets on all four corners (approx. 24 in / 0.61 m diameter) |
| Tear Strength | 50 lbs/in × 50 lbs/in (approx. 8.93 kN/m × 8.93 kN/m) |
| Tensile Strength | 200 N/50mm (warp) × 1500 N/50mm (weft) |
| Approx. 45 lbf/in (warp) × 337 lbf/in (weft), per ISO 13934-1 | |
| Applications | – Automated Warehouses and Logistics |
| – Fire emergency preparedness for small-to-medium-sized vehicle fleets |
- BS EN 1869:2019
- NFPA701
- FM4950
- UL94 V0
