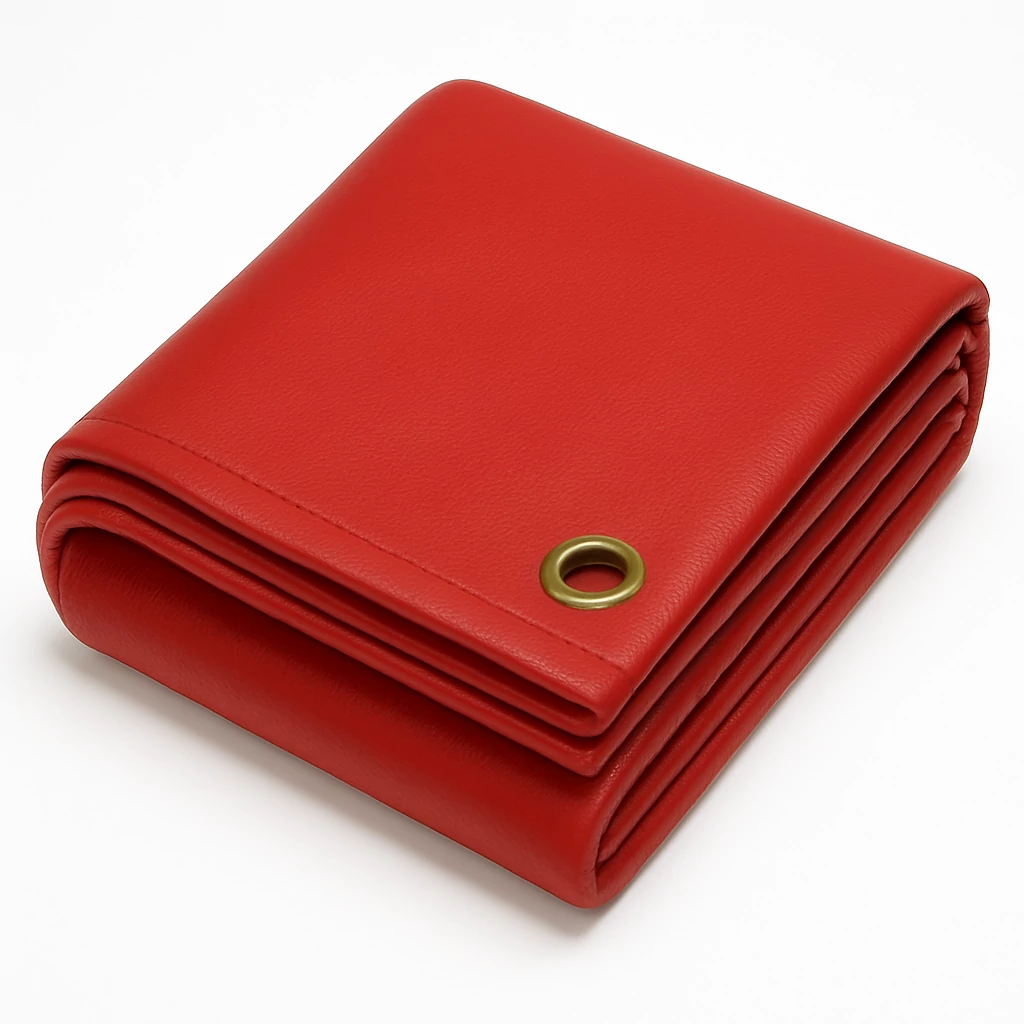

Silicone Coated Fiberglass Welding Blanket
The Safeprotex Silicone-Coated Fiberglass Welding Blanket is made from a fiberglass base fabric coated with a durable layer of silicone rubber. The silicone layer withstands temperatures up to 500°F (260°C), while the fiberglass base fabric endures up to 1022°F (550°C), providing exceptional protection in industrial environments.
The silicone coating enhances fiberglass performance, offering flexibility, heat resistance (260°C/500°F), and protection against water, oil, chemicals, UV, and abrasion. It ensures durability in welding, fire protection, waterproofing, and chemical-resistant applications across industrial environments.
Welding blanket is designed for fire protection, waterproofing, and chemical resistance, making it suitable for welding operations, industrial environments with heat sources, and applications involving liquid and chemical exposure.
THICKNESS:
0.030"
0.031"
0.035"
0.040"
0.080"
Customization
SIZE：
3′×4′
4′×6′
5′×6′
6′×6′
6′×8′
6′×9′
8′×8′
Customization
Key Features:
- Comprehensive Performance: Combines the high strength of fiberglass with the flexibility of silicone coating, suitable for diverse industrial applications.
- Heat and Multi-Source Protection: Provides robust protection from heat, liquids, and chemicals, with a silicone coating heat resistance up to 260°C (500°F) and a fiberglass base fabric heat resistance up to 550°C (1022°F).
- Enhanced Longevity: Silicone coating resists aging, UV exposure, and chemical corrosion, significantly extending product lifespan.
- Certified Safety: Tested and certified to meet FM Global and NFPA-701 flame-retardant standards, ensuring compliance with international fire safety regulations.
- Customizable Solutions: Fully adaptable to specific industrial needs, particularly in welding, liquid handling, and chemical-resistant applications.
Applications:
- Ideal for use in welding operations, fire protection, liquid resistance, and chemical environments, particularly where heat sources and liquid media are prevalent.
| Attribute | Specification |
| Base Material | Glass Fiber Fabric |
| Coating Type | Silicone Rubber Coating |
| Color | Standard gray, red; other colors customizable. |
| Weaving Pattern | Plain or twill weave. |
| Yarn Density | 48 × 48 ends/inch (weft × warp). |
| Unit Area Weight | 20 oz/yd² to 30 oz/yd² (with coating, approx. 680 g/m² to 1020 g/m²). |
| Thickness | 0.03 in (0.75 mm) to 0.08 in (2 mm), customizable. |
| Size Range | Standard: 3ft × 3ft to 9ft × 9ft; fully customizable. |
| Temperature Resistance | – Coating: 500°F (260°C) for continuous use. |
| – Base Fabric: 1022°F (550°C) for continuous use. | |
| – Short-term Exposure: Coating can withstand up to 572°F (300°C) momentarily. | |
| Protective Properties | – Flame-Resistant: Coating meets international standards. |
| – Waterproof: Excellent water resistance. | |
| – Oil and Chemical Resistance: Suitable for oil and chemical-rich environments. | |
| Edge Treatment | High-temperature sewn edges with grommets every 24 inches for easy hanging and securing. |
| Tear Strength | 75 lbs/in × 70 lbs/in (warp × weft), per ASTM D2261. |
| Tensile Strength | 3500 N/50mm (warp) × 3000 N/50mm (weft), per ISO 13934-1. |
| Abrasion Resistance | Enhanced by silicone coating, suitable for frequent mechanical contact. |
| Flame Resistance | – Certified to FM Global standards. |
| – Certified to NFPA-701 standards. | |
| Anti-Aging Properties | – Excellent UV resistance for long-term outdoor use. |
| – Strong oxidation resistance for extended service life. | |
| Flexibility | High; suitable for folding, rolling, and use in complex environments. |
| Water Permeability | None. |
| Applications | Ideal for fire-resistant, waterproof, and chemically-resistant welding operations, as well as humid, oily, and chemical environments. |
| Customization | – Customizable size, thickness, color, and edge treatments. |
| – Adjustable grommet spacing and fabric shapes upon request. |
- BS EN 1869:2019
- NFPA701
- FM4950
- UL94 V0
