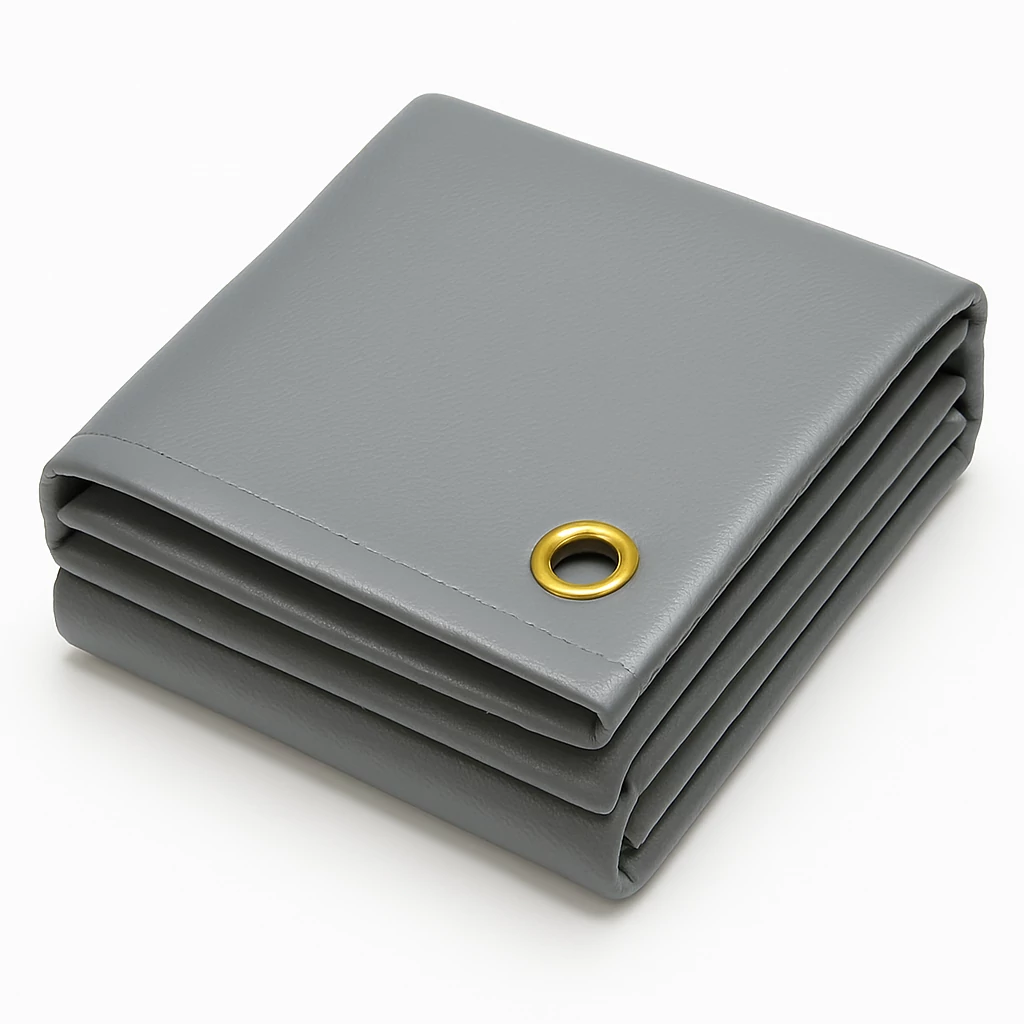

Silicone Coated Silica Welding Blanket
The Safeprotex Silicone-Coated High Silica Welding Blanket is crafted from high silica fabric with a silicone rubber coating. The silicone layer withstands up to 500°F (260°C), while the silica welding fabric handles 1000°C (1832°F) for long-term use, with a softening point of 1700°C (3092°F). The silicone coating enhances silica welding fabric’s performance for extreme environments by providing thermal protection under continuous 1000°C and momentary 1200°C, resisting water, oil, and chemicals for use in humid or chemical-rich settings, and improving mechanical properties such as abrasion resistance, tear resistance, and flexibility to extend product lifespan. Silicone coated high silica welding blanket also offers UV and aging protection to prevent brittleness and discoloration in outdoor conditions, while its flame-retardant properties form a carbonized layer to suppress flame spread and protect the base fabric. The smooth surface of the silicone coating is easy to clean and allows for precise cutting and customization, making it suitable for diverse industrial applications. Certified to FM Global and NFPA-701 standards, it provides reliable safety and exceptional performance in welding, fire protection, and chemical resistance.
THICKNESS:
0.030"
0.031"
0.035"
0.040"
0.080"
Customization
SIZE：
3′×4′
4′×6′
5′×6′
6′×6′
6′×8′
6′×9′
8′×8′
Customization
Key Features:
- Extreme High-Temperature Resistance: The base fabric withstands continuous temperatures up to 1000°C (1832°F) and momentary exposure to 1200°C (2192°F), delivering exceptional thermal protection.
- Comprehensive Multi-Layer Protection: The silicone coating provides water, oil, and chemical resistance, making it ideal for chemical processing and humid environments.
- Superior Mechanical Properties: Enhanced abrasion resistance, tear strength, and flexibility ensure adaptability to diverse industrial applications and extend product lifespan.
- Excellent Anti-Aging Performance: The coating resists UV exposure and oxidation, prolonging outdoor durability and maintaining long-term performance stability.
- International Certification Assurance: Certified to FM Global and NFPA-701 flame-retardant standards, ensuring compliance with industrial safety requirements.
Applications:
- Ideal for welding, fire protection, waterproofing, and chemical-resistant operations in extreme industrial environments, especially those requiring high heat, chemical, and mechanical resistance.
| Attribute | Specification |
| Base Material | High Silica Fiberglass Fabric (SiO₂ content ≥ 96%) |
| Coating Type | Silicone Rubber Coating |
| Color | Standard gray, red; customizable upon request. |
| Weaving Pattern | Plain or twill weave. |
| Yarn Density | 60 × 40 ends/inch (warp × weft). |
| Unit Area Weight | 24 oz/yd² to 36 oz/yd² (approx. 800 g/m² to 1200 g/m², including coating). |
| Thickness | 0.03 in (0.75 mm) to 0.08 in (2 mm), fully customizable. |
| Size Range | Standard: 3ft × 3ft to 9ft × 9ft; fully customizable. |
| Temperature Resistance | – Coating: 500°F (260°C) for continuous use. |
| – Base Fabric: 1000°C (1832°F) for continuous use. | |
| – Short-term Exposure: Up to 1200°C (2192°F). | |
| Softening Point | 1700°C (3092°F). |
| Protective Features | – Waterproof: Exceptional water resistance. |
| – Oil and Chemical Resistance: Ideal for industrial and chemical environments. | |
| – Flame Retardant: Certified to FM Global and NFPA-701 standards. | |
| Edge Treatment | High-temperature sewn edges with grommets every 24 inches for easy hanging and securing. |
| Tear Strength | 80 lbs/in × 75 lbs/in (warp × weft), per ASTM D2261. |
| Tensile Strength | 4500 N/50mm (warp) × 4000 N/50mm (weft), per ISO 13934-1. |
| Abrasion Resistance | Enhanced by silicone coating, suitable for frequent mechanical abrasion. |
| Anti-Aging Properties | – Excellent UV and oxidation resistance, ensuring long-term outdoor durability. |
| – Prevents discoloration, brittleness, and performance degradation from sunlight. | |
| Flexibility | High; suitable for folding, rolling, and complex industrial environments. |
| Water Permeability | None. |
| Ease of Cleaning | Smooth silicone-coated surface is easy to clean, reducing dust and particle buildup. |
| Applications | Ideal for fire, water, oil, and chemical resistance, as well as high-temperature protection in welding, foundry, and chemical environments. |
| Customization Options | – Customizable size, thickness, color, and edge treatments. |
| – Adjustable grommet spacing, fabric shape, and cutting upon request. |
- BS EN 1869:2019
- NFPA701
- FM4950
- UL94 V0
