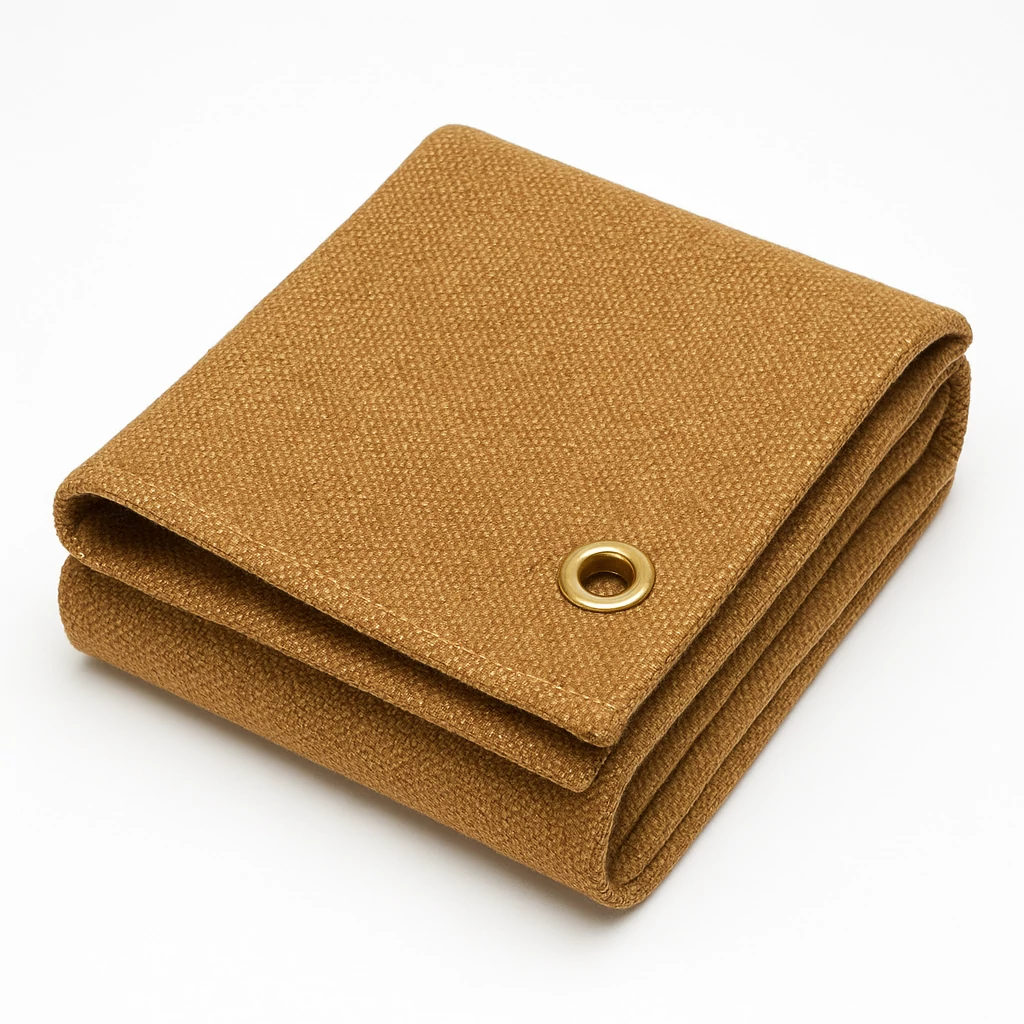

Vermiculite Coated Fiberglass Welding Blanket
The Safeprotex Vermiculite-Coated Fiberglass Welding Blanket is made from vermiculite-coated fiberglass fabric, where the vermiculite coating forms a protective layer on the fiberglass surface. This advanced coating technology allows welding blanket to endure fixed working temperatures up to 810°C (1490°F) and maximum instantaneous temperatures up to 1090°C (1994°F).
Vermiculite Coating is derived from natural mineral sources and is widely used in high-temperature industrial environments. Its unique properties provide the following benefits:
- Enhanced Heat Resistance: Withstands continuous high temperatures up to 810°C (1490°F) and absorbs and reflects heat energy, shielding the substrate from thermal shock and molten metal splashes.
- Excellent Thermal Shock Stability: Maintains performance under rapid temperature changes, offering superior protection.
- Improved Mechanical Strength: Increases abrasion resistance, tear resistance, and overall durability, making it ideal for harsh industrial conditions.
- Surface Hardness: High surface rigidity ensures the coating resists peeling or wear, even under extreme temperatures.
Certifications and Standards:
The Safeprotex Vermiculite Welding Blanket is manufactured in compliance with NRC Guide 1.36, Military Specification MIL-I-24244, and ASTM E84 standards. It is ANSI/FM 4950 approved for use as welding curtains and construction fire insulation, and it meets the BS 476 vertical fire testing standard for building safety.
THICKNESS:
0.030"
0.031"
0.035"
0.040"
0.080"
Customization
SIZE：
3′×4′
4′×6′
5′×6′
6′×6′
6′×8′
6′×9′
8′×8′
Customization
Key Features:
- Exceptional Heat Resistance: Handles continuous temperatures of 810°C (1490°F) and withstands short-term exposure to 1090°C (1994°F), ideal for high-temperature industrial applications.
- Thermal Shock and High-Strength Protection: The vermiculite coating absorbs and reflects heat, shielding the substrate from damage caused by thermal shock and molten metal splatter.
- Enhanced Durability: Improves abrasion resistance, tear strength, and overall longevity, ensuring performance in demanding industrial environments.
- Certified Safety: Complies with ANSI/FM 4950, ASTM E84, and BS 476, making it suitable for welding, fireproofing, and industrial applications.
- Customizable Options: Fully customizable thickness, size, and edge treatments to meet the unique demands of various industrial scenarios.
Applications:
- Ideal for use in steel plants, arc welding, high-temperature kilns, and molten metal splash protection. This welding blanket is a reliable safety solution for harsh environments where extreme heat and industrial debris are present.
| Attribute | Specification |
| Base Material | Fiberglass Fabric |
| Coating Type | Vermiculite Coating |
| Color | Bronze-gold (natural coating color), customizable to other colors. |
| Weaving Pattern | Plain or twill weave. |
| Yarn Density | 48 × 48 ends/inch (warp × weft). |
| Unit Area Weight | 20 oz/yd² to 36 oz/yd² (approx. 680 g/m² to 1200 g/m², including coating). |
| Thickness | 0.03 in (0.75 mm) to 0.08 in (2 mm), fully customizable. |
| Size Range | Standard: 3ft × 3ft to 9ft × 9ft; fully customizable upon request. |
| Temperature Resistance | – Fixed Working Temperature: 810°C (1490°F). |
| – Maximum Instantaneous Temperature: 1090°C (1994°F). | |
| Melting Point | Fiberglass substrate melts at approx. 1000°C (1832°F). |
| Thermal Shock Resistance | Excellent, withstands rapid temperature changes. |
| Protective Properties | – High-Temperature Resistance: Reflects heat energy, preventing direct thermal radiation to the substrate. |
| – Molten Metal Splash Resistance: Protects against molten metal debris and splatter. | |
| – Fire Resistance: Meets ANSI/FM 4950 and BS 476 standards. | |
| Edge Treatment | High-temperature sewn edges with grommets every 24 inches for easy hanging and securing. |
| Tear Strength | 90 lbs/in × 85 lbs/in (warp × weft), per ASTM D2261. |
| Tensile Strength | 5000 N/50mm (warp) × 4000 N/50mm (weft), per ISO 13934-1. |
| Abrasion Resistance | Enhanced by vermiculite coating, ensuring durability under high heat and mechanical stress. |
| Chemical Resistance | Resistant to weak acids and alkalis, suitable for certain chemical environments. |
| Flexibility | Moderate, suitable for fixed installation and repeated use. |
| Water Permeability | None. |
| Ease of Cleaning | Hard surface coating reduces dust and particle adhesion, easy to clean. |
| Certifications | – NRC Guide 1.36. |
| – Military Specification MIL-I-24244. | |
| – ANSI/FM 4950 (certified for welding curtains and fireproof insulation). | |
| – ASTM E84 and BS 476 (vertical fire testing). | |
| Applications | – High-Temperature Welding & Metalworking: Arc welding, gas welding, high-temperature cutting. |
| – Steel Smelting & Foundry: Protection against molten metal splashes. | |
| – High-Temperature Kilns & Industrial Equipment: Thermal insulation for internal and external kiln coverage. | |
| – Building Fireproofing & Insulation: Ideal for fireproof curtains and fire barrier walls. | |
| Customization | – Fully customizable for size, thickness, color, and edge treatments. |
| – Grommet spacing, shape, and cutting can be tailored to specific needs. |
- BS EN 1869:2019
- NFPA701
- FM4950
- UL94 V0
