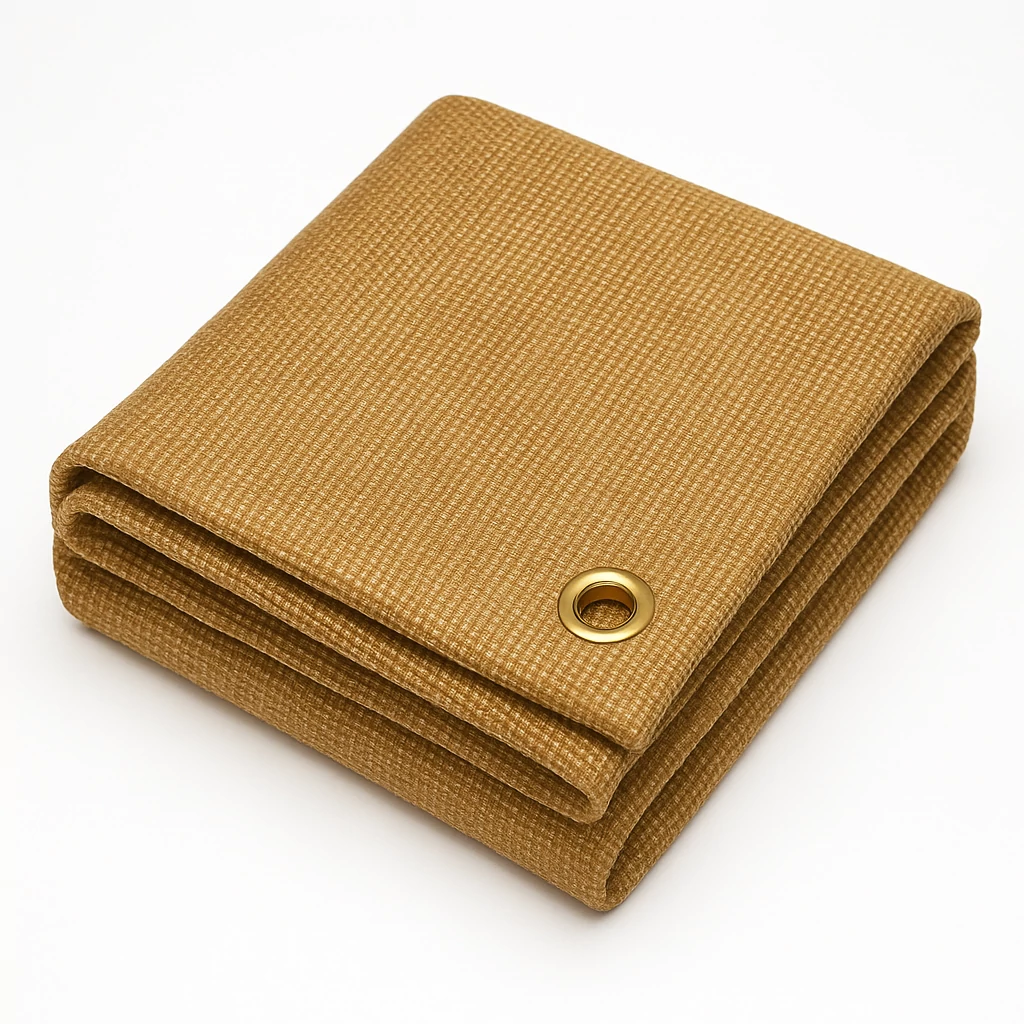

Vermiculite Coated Silica Welding Blanket
The Safeprotex Vermiculite-Coated High Silica Welding Blanket is made from high silica fabric with a vermiculite coating that enhances durability and performance in extreme industrial environments. The vermiculite layer, reinforced with organic adhesion promoters, minimizes peeling and abrasion, improves moisture resistance, and effectively disperses heat across the material surface. This design provides exceptional protection against thermal shock, molten metal splashes, and high temperatures. The vermiculite coating can withstand fixed working temperatures of 810°C (1490°F) and momentary peaks up to 1090°C (1994°F), while the high silica base fabric endures long-term use at 1000°C (1832°F) with a softening point of 1700°C (3092°F). Certified to NFPA 701, FM 4950, and UL 94 V0 standards, this welding blanket ensures compliance with international fire safety regulations. Vermiculite Coated Silica Welding Blanket is also fully customizable in size, thickness, and shape to meet diverse industrial needs.
THICKNESS:
0.030"
0.031"
0.035"
0.040"
0.080"
Customization
SIZE：
3′×4′
4′×6′
5′×6′
6′×6′
6′×8′
6′×9′
8′×8′
Customization
Key Features:
- Extreme Heat Resistance: Withstands continuous temperatures of 1000°C (1832°F) and short-term peaks up to 1090°C (1994°F).
- Enhanced Durability: Resists abrasion, peeling, and thermal shock, ensuring long-term performance in harsh environments.
- Certified Safety Standards: Meets NFPA 701, FM 4950, and UL 94 V0 certifications for industrial and construction applications.
- Customizable Design: Tailored to specific requirements, including dimensions, thickness, and shape, for diverse industrial needs.
Applications:
- High-Temperature Environments: Steel mills, arc welding, and high-temperature kilns.
- Molten Metal Protection: Protects against splashes and debris in foundry and smelting operations.
- Thermal Insulation: Ideal for fireproof barriers, industrial equipment insulation, and building fireproofing.
| Attribute | Specification |
| Base Material | High Silica Fiberglass Fabric (SiO₂ content ≥ 96%). |
| Coating Type | Vermiculite Coating (with organic adhesion promoter). |
| Color | Bronze-gold (natural coating color), customizable upon request. |
| Weaving Pattern | Plain or twill weave. |
| Yarn Density | 60 × 40 ends/inch (warp × weft). |
| Unit Area Weight | 26 oz/yd² to 38 oz/yd² (with coating, approx. 850 g/m² to 1300 g/m²). |
| Thickness | 0.03 in (0.75 mm) to 0.10 in (2.5 mm), fully customizable. |
| Size Range | Standard: 3ft × 3ft to 9ft × 9ft, fully customizable. |
| Temperature Resistance | – Coating: Fixed working temperature 810°C (1490°F), maximum instantaneous 1090°C (1994°F). |
| – Base Fabric: Continuous working temperature 1000°C (1832°F), softening point 1700°C (3092°F). | |
| Thermal Shock Resistance | Excellent, maintaining physical stability during rapid temperature changes. |
| Protective Properties | – High-Temperature Resistance: Coating absorbs and reflects heat, reducing thermal transfer and protecting the substrate. |
| – Molten Metal Splash Resistance: Effectively shields against molten metal drops and metal debris impacts. | |
| – Moisture Resistance: Coating prevents water and moisture ingress. | |
| Edge Treatment | High-temperature sewn edges with grommets every 24 inches for easy hanging and securing. |
| Tear Strength | 95 lbs/in × 85 lbs/in (warp × weft), per ASTM D2261. |
| Tensile Strength | 5500 N/50mm (warp) × 4200 N/50mm (weft), per ISO 13934-1. |
| Abrasion Resistance | High surface hardness resists wear and peeling, suitable for high-temperature mechanical environments. |
| Chemical Resistance | Resistant to weak acids and alkalis, applicable in specific chemical environments. |
| Flexibility | Moderate, suitable for fixed installation and repeated use. |
| Water Permeability | None. |
| Ease of Cleaning | Smooth, hardened coating reduces dust and particle adhesion, easy to clean. |
| Certifications | – NFPA 701 (Flame resistance certification). |
| – FM 4950 (Welding protection and fireproof insulation certification). | |
| – UL 94 V0 (Vertical flame resistance certification). | |
| Applications | – High-Temperature Welding & Cutting: Protects work areas from sparks and slag impacts. |
| – Steel Mills & Foundries: Resists molten metal drops and debris impacts. | |
| – Industrial Kilns & Equipment Insulation: Provides coverage and thermal insulation for equipment. | |
| – Building Fireproofing: Ideal for fireproof curtains, wall insulation, and building safety. | |
| Customization | – Fully customizable in size, thickness, color, and edge treatment. |
| – Grommet spacing, shape, and cutting can be tailored to specific requirements. |
- BS EN 1869:2019
- NFPA701
- FM4950
- UL94 V0
