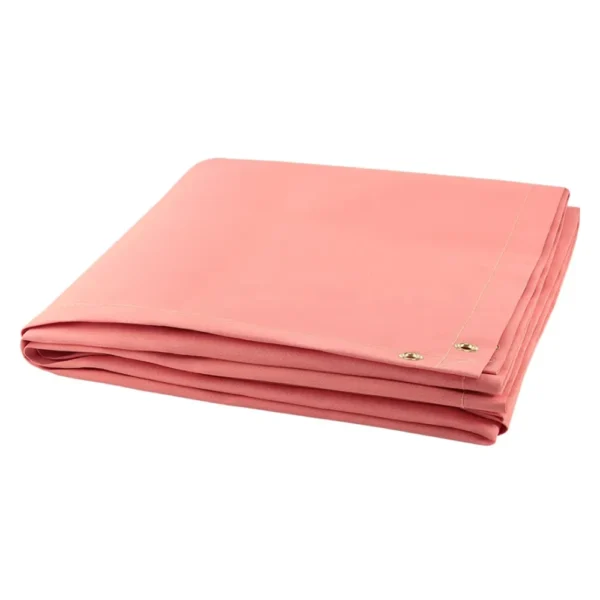

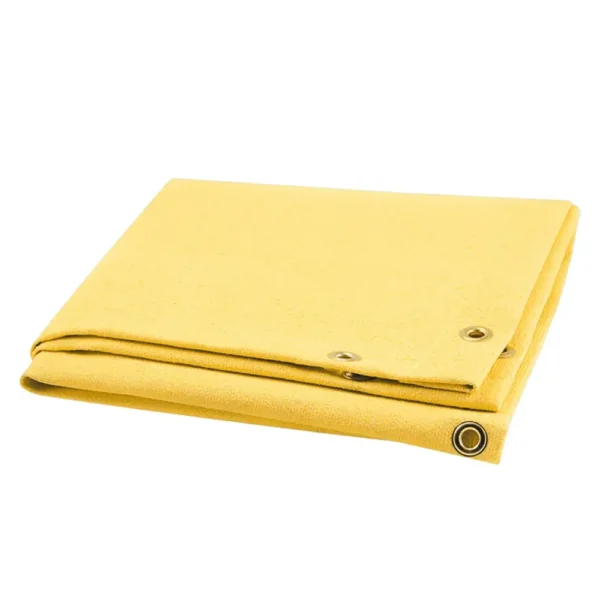

Silicone Coated Fiberglass Welding Blanket
Safeprotex offers high-performance silicone coated fiberglass welding blankets, engineered for toughness, flexibility, and reliable thermal protection in industrial environments.
Constructed from a durable fiberglass substrate and coated with high-grade silicone rubber, silicone coated welding blankets serve as effective thermal barriers, spark shields, and equipment covers for medium to heavy-duty welding operations.
Silicone coated blankets withstand intermittent temperatures up to 1022°F (550°C), extinguish sparks in ≤1.5 seconds, and provide zero flame penetration in accordance with ASTM D4357 standards.
Standard thicknesses and sizes are available, with custom options provided upon request. All products comply with Mil-Y-1140C and are certified to NFPA 701 and UNE EN 1869:2021 specifications.
THICKNESS:
0.030"
0.031"
0.035"
0.040"
0.080"
Customization
SIZE：
3′×4′
4′×6′
5′×6′
6′×6′
6′×8′
6′×9′
8′×8′
Customization
Key Features:
High Temperature Resistance: Withstands intermittent heat up to 1022°F (550°C); sparks self-extinguish within 1.5 seconds per ASTM D4357.
Mechanical Strength: Tear strength of 75/50 lbs/in (13.1 / 8.8 kN/m) and tensile strength of 500/400 lbs/in (87.5 / 70.0 kN/m) (warp/weft).
Material Composition: Silicone-coated satin fiberglass fabric, UL 94 V-0 rated; weight: 17 oz/yd² (576 g/m²), thickness: 17 mils (0.43 mm).

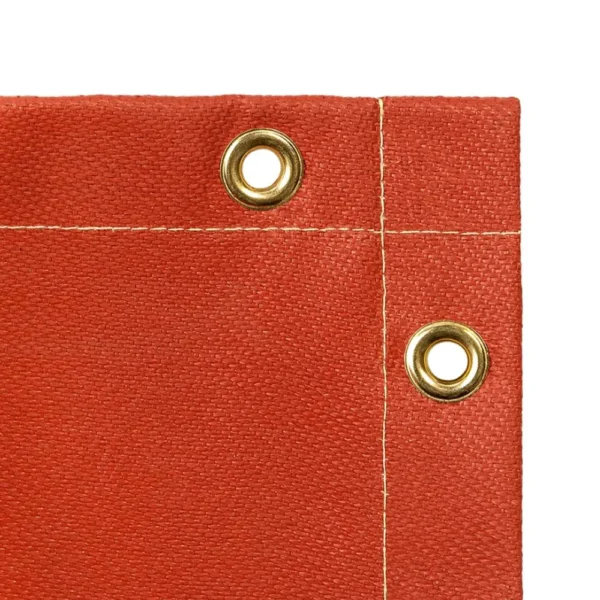

Construction Details: Sewn with high-temperature-resistant thread; No. 2 brass grommets spaced every 24 inches (610 mm) to 36 inches (910 mm) along edges. Available with trimming tolerances of 2–4 inches (50–100 mm) for size adjustments.
Certifications: Compliant with NFPA 701 and UNE EN 1869:2021 flame retardancy standards.
Shelf Life: Up to 5 years when stored in a cool, dry, and shaded environment.
Warranty: 12-month limited product warranty under normal usage conditions.
Applications:
Safeprotex silicone coated fiberglass welding blankets are designed for medium-duty thermal protection and are suitable for a wide range of industrial settings where sparks, spatter, and light slag are present.
Common applications include:
Welding Curtains: Serve as protective barriers in welding bays to prevent spark spread.
Heat Shields: Shield equipment and nearby materials from radiant heat.
Thermal Curtains: Partition high-temperature zones in industrial facilities.
Fire Blankets: Used for emergency flame suppression or prevention.
Removable Insulation Covers: Protect pipes, valves, and flanges where temporary insulation is required.
Expansion Joints & Supply Tarps: Provide heat-resistant sealing and protective covering.
These blankets can also be laid over horizontal surfaces to protect floors, workstations, or machinery from thermal or welding debris.
| Attribute | Specification |
| Base Material | Glass Fiber Fabric |
| Coating Type | Silicone Rubber Coating |
| Color | Standard gray, red; other colors customizable. |
| Weaving Pattern | Plain or twill weave. |
| Yarn Density | 48 × 48 ends/inch (weft × warp). |
| Unit Area Weight | 20 oz/yd² to 30 oz/yd² (with coating, approx. 680 g/m² to 1020 g/m²). |
| Thickness | 0.03 in (0.75 mm) to 0.08 in (2 mm), customizable. |
| Size Range | Standard: 3ft × 3ft to 9ft × 9ft; fully customizable. |
| Temperature Resistance | – Coating: 500°F (260°C) for continuous use. |
| – Base Fabric: 1022°F (550°C) for continuous use. | |
| – Short-term Exposure: Coating can withstand up to 572°F (300°C) momentarily. | |
| Protective Properties | – Flame-Resistant: Coating meets international standards. |
| – Waterproof: Excellent water resistance. | |
| – Oil and Chemical Resistance: Suitable for oil and chemical-rich environments. | |
| Edge Treatment | High-temperature sewn edges with grommets every 24 inches for easy hanging and securing. |
| Tear Strength | 75 lbs/in × 70 lbs/in (warp × weft), per ASTM D2261. |
| Tensile Strength | 3500 N/50mm (warp) × 3000 N/50mm (weft), per ISO 13934-1. |
| Abrasion Resistance | Enhanced by silicone coating, suitable for frequent mechanical contact. |
| Flame Resistance | – Certified to FM Global standards. |
| – Certified to NFPA-701 standards. | |
| Anti-Aging Properties | – Excellent UV resistance for long-term outdoor use. |
| – Strong oxidation resistance for extended service life. | |
| Flexibility | High; suitable for folding, rolling, and use in complex environments. |
| Water Permeability | None. |
| Applications | Ideal for fire-resistant, waterproof, and chemically-resistant welding operations, as well as humid, oily, and chemical environments. |
| Customization | – Customizable size, thickness, color, and edge treatments. |
| – Adjustable grommet spacing and fabric shapes upon request. |
- BS EN 1869:2021
- NFPA701
- FM4950
- UL94 V0
