Welding remains essential across major U.S. industries, supporting over 450,000 professionals and contributing to an annual economic output of more than $20 billion. As operations expand in sectors like construction, shipbuilding, and energy, the demand for reliable welding protection equipment continues to grow.
Among these tools, proper welding blanket maintenance is critical. Flame retardant welding blankets are designed to shield nearby surfaces and personnel from sparks and spatter, making them essential for fire prevention and regulatory compliance during hot work.
However, despite their importance, welding blanket maintenance is often overlooked. When exposed to oil, slag buildup, or physical wear, welding blankets can lose their heat resistant properties, increasing the risk of fire hazards, equipment damage, and violations of safety regulations such as OSHA 1910.252 and NFPA 51B.
Maintaining welding blankets isn’t just about service life—it’s about risk mitigation, workplace safety, and preventing costly downtime.
Welding Protection Blankets
Welding blankets are heat resistant and flame retardant protective fabrics specifically engineered to shield surrounding areas from sparks, spatter, slag, and radiant heat generated during welding, grinding, and other forms of hot work. These safety covers are typically manufactured using high-temperature base fabrics such as woven fiberglass or silica, selected based on the desired thermal rating and durability.
Many industrial-grade welding blankets incorporate coatings like silicone, vermiculite, or neoprene to improve abrasion resistance, chemical stability, and containment of sparks and spatter. Temperature resistance can vary significantly by material class, ranging from 300°F for light-duty fabrics to over 2,000°F for heavy-duty silica-based options.
Welding blankets are commonly specified for use in fabrication shops, shipyards, power plants, construction zones, and petrochemical facilities. Key functions include hot work isolation, fire prevention, spark containment, and surface protection around flammable or heat-sensitive equipment. For a more detailed application overview, refer to the Fire Protection with Welding Blankets guide.
To support compliance and safety, high-quality welding blankets are often rated according to ANSI/FM 4950, which classifies flame retardant fabrics based on performance in vertical flame testing and intended use environments. For more on fabric types and selection guidance, see Types of Welding Blankets and How to Choose.

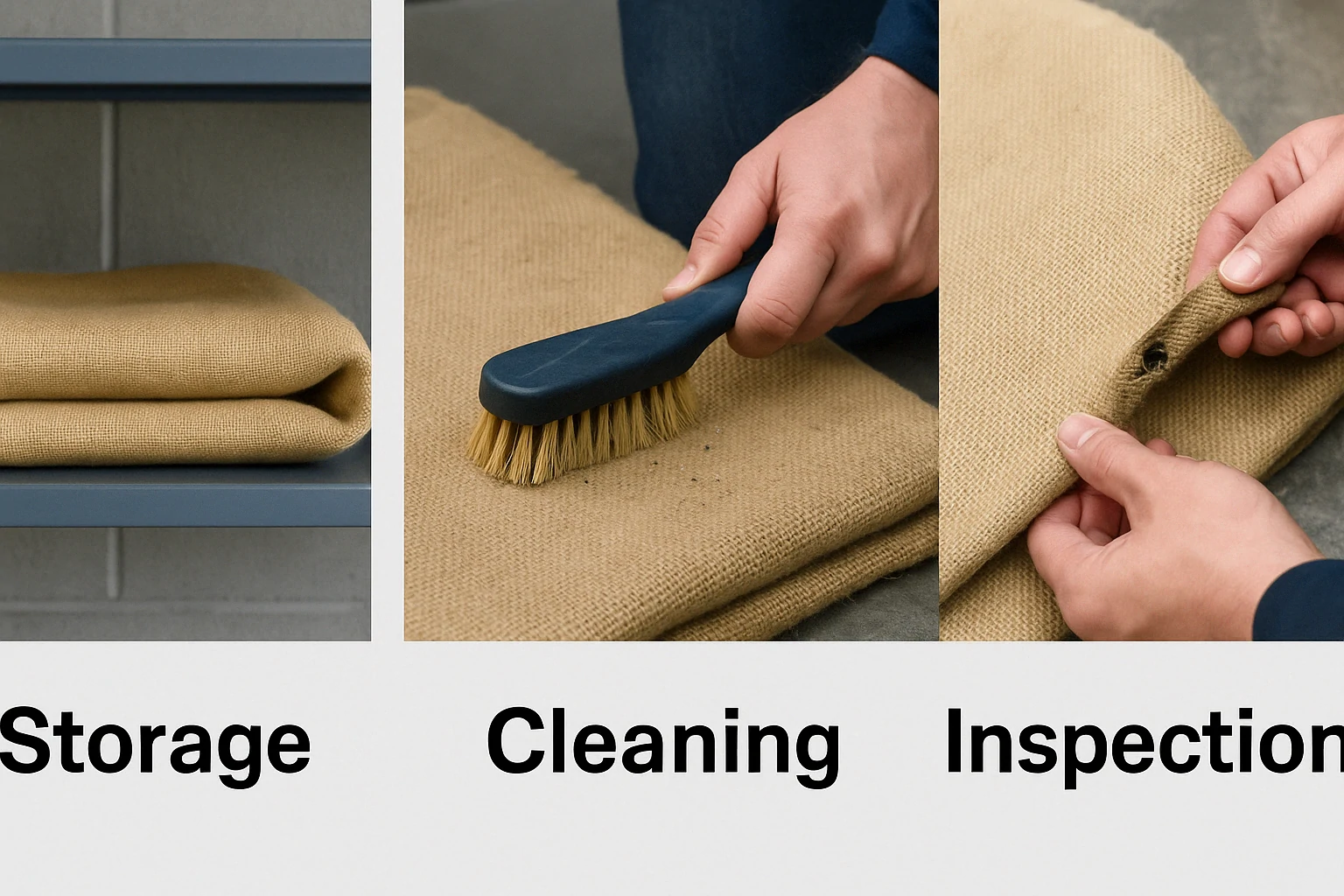

Welding Blanket Maintenance Guidelines
Welding blanket maintenance is not a one-size-fits-all process. Material type, coating structure, and application intensity all impact how each welding blanket should be stored, cleaned, and inspected. Inadequate welding blanket maintenance can compromise flame retardant properties, shorten service life, and increase the risk of fire hazards and regulatory violations.
Storage Conditions
According to FM Global Data Sheet 10-3, welding blankets should be stored at 50–95°F (10–35°C) with relative humidity below 60%. Blankets must be kept dry and protected from direct sunlight, chemical vapors, and UV radiation to maintain heat resistant performance.
Coated welding blankets (e.g., with silicone or neoprene): require enclosed cabinet storage due to greater sensitivity to environmental exposure.
Uncoated fiberglass blankets: more durable but should still be kept off concrete surfaces and away from moisture.
Cleaning Procedures
Surface contaminants like oil, slag, and metallic dust can reduce flame retardant effectiveness. Cleaning should be matched to blanket type:
Uncoated welding blankets: dry-brush or vacuum weekly to remove residual sparks and spatter buildup.
Coated welding blankets: gently clean with a pH-neutral solution every 5–10 uses; avoid pressure washing or harsh solvents.
Always allow full drying before reuse to maintain heat resistant properties and prevent material degradation.
Inspection and Reuse Evaluation
ANSI/FM 4950 requires flame retardant welding blankets to remain structurally intact and free of performance-compromising damage. Post-use inspection should be conducted after every hot work application.
| Welding Blanket Type | Inspection Focus | Retirement Criteria |
|---|---|---|
| Uncoated fiberglass | Fraying fibers, stiffness, surface erosion | Replace if holes > 1/2 inch or fibers brittle |
| Silica-based | Glazing, burnt edges, fused spots | Retire if loss of flexibility or discoloration |
| Coated blankets | Delamination, coating cracks, edge seal failure | Replace if flame retardant coating peels or cracks |
Reusability Guideline: A welding blanket may only be reused if flame resistance, flexibility, and physical coverage remain fully intact. Blankets that appear visually sound may still fail thermal performance if coatings or fibers are compromised.
To support safe and consistent operations, welding facilities should document all welding blanket maintenance activities, including cleaning schedules, inspection outcomes, and replacement timelines.
Safeprotex is a trusted U.S.-based manufacturer specializing in heat resistant and flame retardant welding blankets for industrial applications. We support customers with product selection by temperature class and coating type, as well as technical guidance on cleaning routines, inspection protocols, and long-term care planning.
Whether you’re maintaining a fleet of uncoated fiberglass blankets or managing high-temperature silica and coated blankets in high-risk environments, Safeprotex is here to help ensure ongoing protection from sparks and spatter—and full confidence in your safety program.
Learn more at Safeprotex.com, or contact our technical team for customized support.
